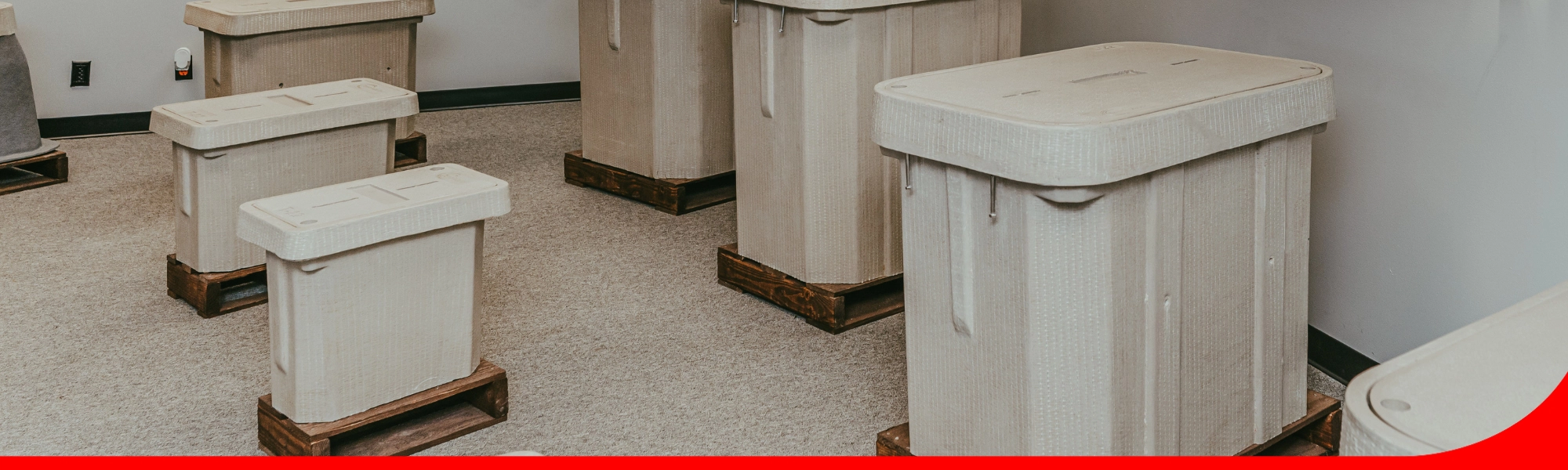

Polymer Concrete Products (Tier 22)

Heavy-Duty Protection for Critical Systems

Key Features & Benefits:

Extreme Strength

Built with a proprietary blend of polymers and aggregates, offering high structural integrity.

Corrosion & Freeze / Thaw Resistant

Ideal for harsh environments, including areas with extreme weather.

Customizable Options

Conduit entries, cable racks, grounding kits, and more.

Buy American Act Compliant

Suitable for federally funded infrastructure projects.

High Load Rating

Rated up to H-20, suitable for heavy vehicular traffic.

Resources View Specs Request a Quote

Meets or exceeds RUS/ANSI/SCTE 77 REQUIREMENTS

BUY AMERICAN ACT COMPLIANT

Polymer

MODEL 12 x 12 x 12
MODEL 11 x 18 x 18
MODEL 13 x 24 x 18
MODEL 17 x 30
MODEL 24 x 24 x 24
MODEL 24 x 36
MODEL 30 x 48
MODEL 30 x 60 x 30
MODEL 36 x 60 x 36
MODEL 48 x 72 x 48
MODEL 48 x 96 x 48
ROUND – MODEL 22 x 00 x 24
ROUND – MODEL 27 x 00 x 36
ROUND – MODEL 32 x 00 x 36
ROUND – MODEL 36 x 00 x 36

Model 12 x 12 x 12 PC

Cover
Dimensions	12″ x 12″
Material	Poly Concrete
Style	Flush Solid
Weight	12lbs
Height	1″
Rating & Standard	Tier 22, ANSI
Lift Points	1/4″ SS Rod
Fasteners	3/8-16 x 1 1/2″ SS Hex Bolt

Body
Model	12″ x 12″
Material	Polymer Concrete
Wall type	Straight

Download Spec Sheet

Model 11 x 18 x 18 PC

Cover
Dimensions	11″ x 18″
Material	Poly Concrete
Style	Flush Solid
Weight	28lbs
Height	2″
Rating & Standard	Tier 22, ANSI
Lift Points	1/4″ SS Rod
Fasteners	3/8-16 x 2″ SS Hex Bolt

Body
Model	11″ x 18″
Material	Polymer Concrete
Wall type	Straight

Download Spec Sheet

Model 13 x 24 x 18 PC

Cover
Dimensions	13″ x 24″
Material	Polymer Concrete
Style	Flush Solid
Weight	44lbs
Height	2″
Rating & Standard	Tier 22, ANSI
Lift Points	1/4″ SS Rod
Fasteners	3/8-16 x 2″ SS Hex Bolt

Body
Model	13″ x 24″
Material	Polymer Concrete
Wall type	Straight

Download Spec Sheet

Model 17 x 30 PC

Cover
Dimensions	17″ x 30″
Material	Polymer Concrete
Style	Flush Solid
Weight	68lbs
Height	2″
Rating & Standard	Tier 22, ANSI
Lift Points	1/4″ SS Rod
Fasteners	3/8-16 x 2″ SS Hex Bolt

Body
Model	17″ x 30″
Material	Polymer Concrete
Wall type	Straight

Download Spec Sheet

Model 24 x 24 x 24 PC

Cover
Dimensions	24″ x 24″
Material	Poly Concrete
Style	Flush Solid
Weight	69lbs
Height	3″
Rating & Standard	Tier 22, ANSI
Lift Points	1/4″ SS Rod
Fasteners	3/8-16 x 3″ SS Hex Bolt

Body
Model	24″ x 24″
Material	Polymer Concrete
Wall type	Straight

Download Spec Sheet

Model 24 x 36 Series PC

Cover
Dimensions	24″ x 36″
Material	Polymer Concrete
Style	Flush Solid
Weight	104lbs
Height	3″
Rating & Standard	Tier 22, ANSI
Lift Points	1/4″ SS Rod
Fasteners	3/8-16 x 3″ SS Hex Bolt

Body
Model	24″ x 36″
Material	Polymer Concrete
Wall type	Straight

Download Spec Sheet

Model 30 x 48 PC

Cover
Dimensions	30″ x 48″
Material	Polymer Concrete
Style	Flush Solid
Weight	176lbs
Height	3″
Rating & Standard	Tier 22, ANSI
Lift Points	1/4″ SS Rod
Fasteners	3/8-16 x 3″ SS Hex Bolt

Body
Model	30″ x 48″
Material	Polymer Concrete
Wall type	Straight

Download Spec Sheet

Model 30 x 60 x 30 PC

Cover
Dimensions	30″ x 60″
Material	Poly Concrete
Style	Flush Solid
Weight	320lbs
Height	3″
Rating & Standard	Tier 22, ANSI
Lift Points	1/4″ SS Rod
Fasteners	3/8-16 x 3″ SS Hex Bolt

Body
Model	30″ x 60″
Material	Polymer Concrete
Wall type	Straight

Download Spec Sheet

Model 36 x 60 x 36 PC

Cover
Dimensions	36″ x 60″
Material	Poly Concrete
Style	Flush Solid
Weight	388lbs
Height	3″
Rating & Standard	Tier 22, ANSI
Lift Points	1/4″ SS Rod
Fasteners	3/8-16 x 3″ SS Hex Bolt

Body
Model	36″ x 60″
Material	Polymer Concrete
Wall type	Straight

Download Spec Sheet

Model 48 x 72 x 48 PC

Cover
Dimensions	48″ x 72″
Material	Poly Concrete
Style	Flush Solid
Weight	484lbs
Height	3″
Rating & Standard	Tier 22, ANSI
Lift Points	1/4″ SS Rod
Fasteners	3/8-16 x 3″ SS Hex Bolt

Body
Model	48″ x 72″
Material	Polymer Concrete
Wall type	Straight

Download Spec Sheet

Model 48 x 96 x 48 PC

Cover
Dimensions	48″ x 96″
Material	Poly Concrete
Style	Flush Solid
Weight	756lbs
Height	3″
Rating & Standard	Tier 22, ANSI
Lift Points	1/4″ SS Rod
Fasteners	3/8-16 x 3″ SS Hex Bolt
Drop in beam	3″ x 3″

Body
Model	48″ x 96″
Material	Polymer Concrete
Wall type	Straight

Download Spec Sheet

Model 22 x 00 x 24 PC

Cover
Dimensions	22″ x 00″
Material	Poly Concrete
Style	Flush Solid
Weight	60lbs
Height	2″
Rating & Standard	Tier 22, ANSI
Lift Points	1/4″ SS Rod
Fasteners	3/8-16 x 3″ SS Hex Bolt

Body
Model	22″ x 00″
Material	Polymer Concrete
Wall type	Straight
Diameter	24 1/4″
Height	24″
Weight	164lbs

Download Spec Sheet

Model 27 x 00 x 36 PC

Cover
Dimensions	27″ x 00″
Material	Poly Concrete
Style	Flush Solid
Weight	78lbs
Height	3″
Rating & Standard	Tier 22, ANSI
Lift Points	1/4″ SS Rod
Fasteners	3/8-16 x 3″ SS Hex Bolt

Body
Model	27″ x 00″
Material	Polymer Concrete
Wall type	Straight
Diameter	27 3/8″
Height	36″
Weight	268lbs

Download Spec Sheet

Model 32 x 00 x 36 PC

Cover
Dimensions	32″ x 00″
Material	Polymer Concrete
Style	Flush Solid
Weight	139lbs
Height	3″
Rating & Standard	Tier 22, ANSI
Lift Points	1/4″ SS Rod
Fasteners	3/8-16 x 3″ SS Hex Bolt

Body
Model	32″ x 00″
Material	Polymer Concrete
Wall type	Straight
Diameter	34 1/8″
Height	36″
Weight	298lbs

Download Spec Sheet

Model 36 x 00 x 36 PC

Cover
Dimensions	36″ x 00″
Material	Polymer Concrete
Style	Flush Solid
Weight	156lbs
Height	3″
Rating & Standard	Tier 22, ANSI
Lift Points	1/4″ SS Rod
Fasteners	3/8-16 x 3″ SS Hex Bolt

Body
Model	36″ x 00″
Material	Polymer Concrete
Wall type	Straight
Diameter	36 1/4″
Height	36″
Weight	336lbs

Download Spec Sheet
